Cheetah II
Key Features
-
Drive TypeHeavy-Duty Hero Cutter Deck
-
Engine TypeHero Cutter Deck
-
Weight555 lbs
-
Length68.5"
Overview
COME HOME TO THE BEST
Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
Products Specs
General
| Total Fuel Capacity | 3.5 gallons (36″ and 42″) 5.5 gallons (48″, 52″ and 61″) |
| Drive Tires | 20″ x 8″-10″ (36″) 20″ x 10″-8″ (42″, 48″ and 52″) 20″ x 10″-10″ (61″) |
| Caster Tires | 11″ x 4″-5″ (36″ and 42″) 11″ x 6″-5″ (48″, 52″ and 61″) |

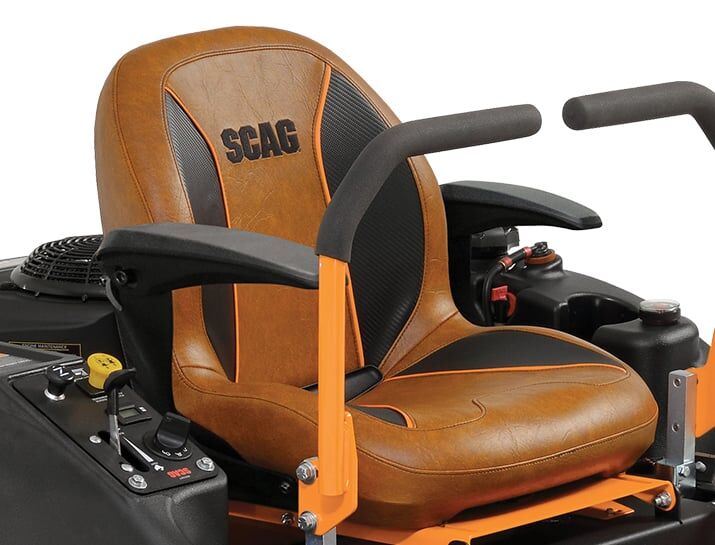

| Seat | Padded with arm rests, adjustment forward and back (tools required) (no armrests on 36″ and 42″ models) |
Drive System

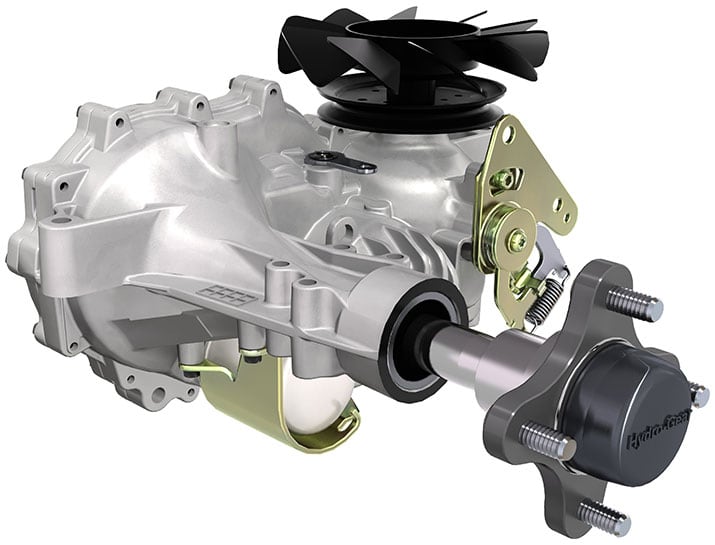

| Drive System Type | 36″ and 42″ models: Hydro-Gear ZT-2800 Transaxle 48″ and 52″ models: Tuff Torq TZ450 Transaxle 61″ models: Hydro-Gear ZT3100 Transaxle |
| Pumps | Internal Pump: 10 cc |
| Motors | Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear) |
| Forward Ground Speed | 7 mph |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
Deck
| Cutting Widths | 36″, 42″, 48″, 52″ and 61″ |

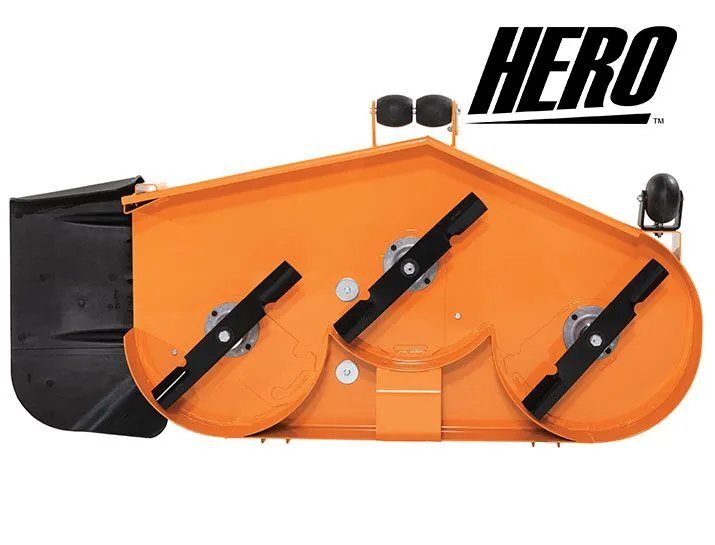

| Type | Heavy-Duty Hero Cutter Deck |
| Cutting Height | 1.5″ to 4.5″ in .25″ increments |

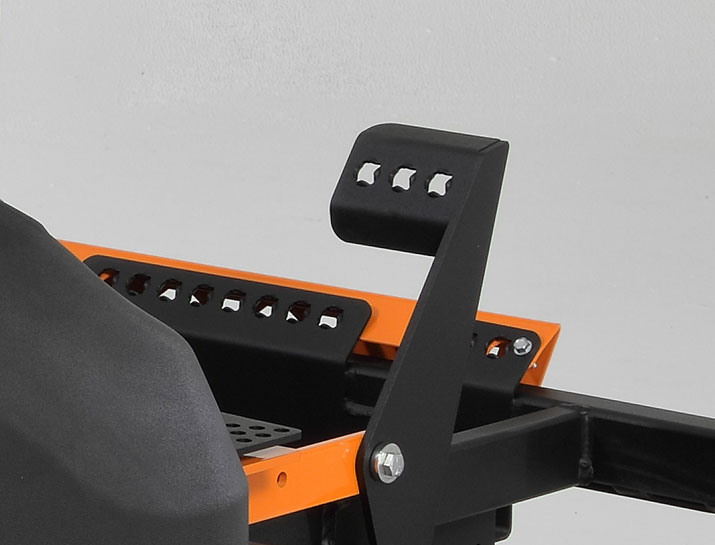

| Deck Lift | Foot-operated pedal |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Spindles | Aluminum housing with sealed ball bearings. |

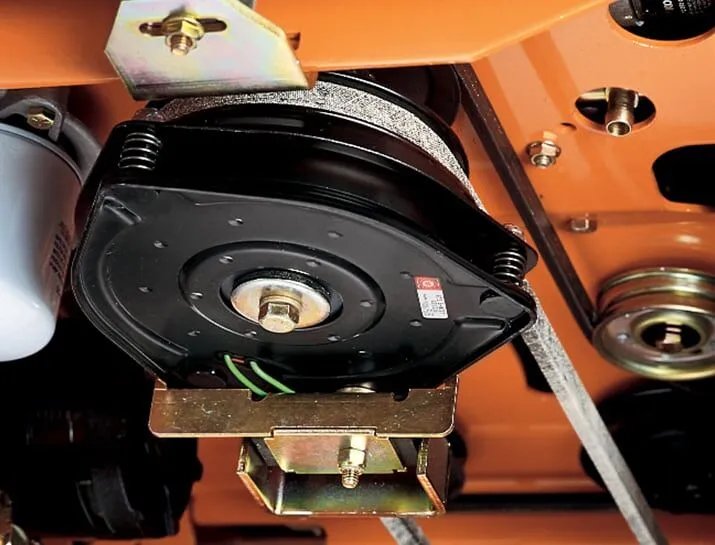

| Blade Engagement | Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″) Ogura GT2 (108 ft lb) – (61″) Adjustable air-gap for extended life. |
Scag

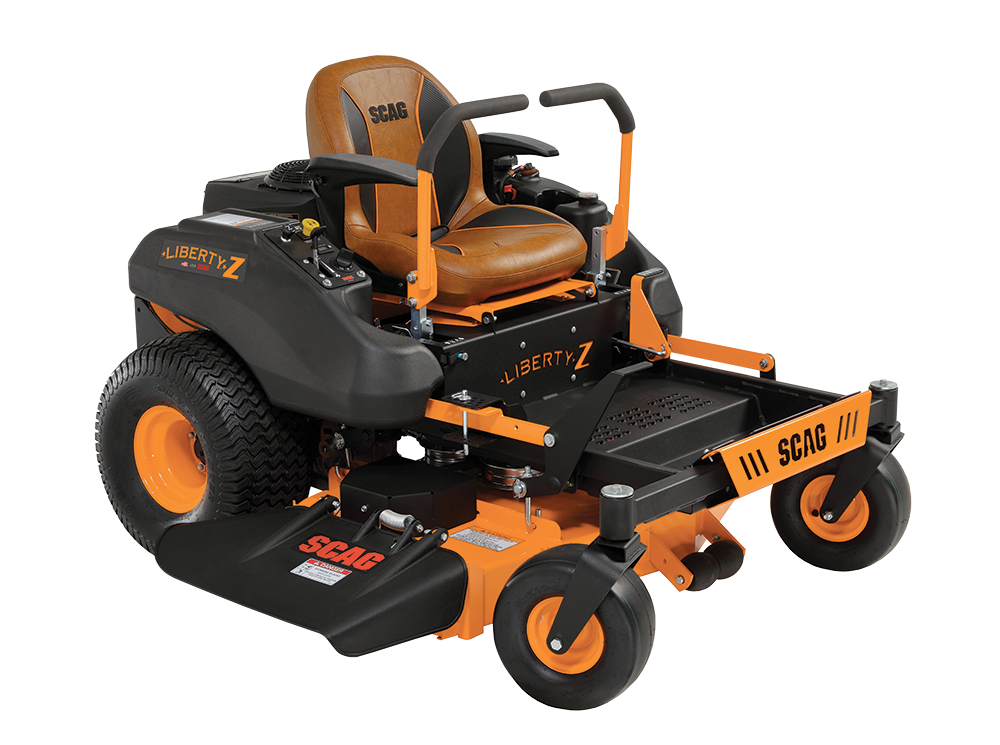

Liberty Z
Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point.
COME HOME TO THE BEST
Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
- SZL-36H-18FR | SZL-36H-20KT | SZL-36H-20PX | SZL-42H-21FR | SZL-42H-22PX | SZL-42H-22KT | SZL-48H-21FR | SZL-48H-22KT | SZL-48H-22PX | SZL-48H-24SR | SZL-52H-23FR | SZL-52H-24SR | SZL-52H-24KT | SZL-52H-24PX | SZL-61H-24FR | SZL-61H-26KT | SZL-61H-27SR
Price range: $5,599.00 through $7,399.00
-
